MAG 540w3 4K WIFI SET TOP BOX

Description

It plays 4K HDR video at 60 fps

MAG540/540w3 supports AV1 and HEVC codecs to make sure the device plays 4K content without overloading the network² While the H.264 codec requires 32 Mbit/sec to process such video, HEVC requires only 16 Mbit/sec.³

4K and HEVC support

ARM Cortex-A35 CPU, 2000 MHz

4 GB eMMC

1 GB RAM

User-friendly IR remote

Linux 4.9

Dual-band Wi-Fi module

Qubic design

USB ports for connecting peripherals

MAG540/540w3 is equipped with two USB 2.0 ports. They allow connecting wired and wireless devices, such as keyboards, mice, memory cards, etc. Peripherals make it easier to type and use the browser.

Ethernet and Wi-Fi connectivity

The set-top box supports both wired and wireless connections. The Ethernet port provides data transfer speeds of up to 100 Mbit/s. The Wi-Fi module operates in two bands with data transfer speeds of up to 100 Mbit/s in 2.4 GHz mode and 550 Mbit/s in 5 GHz⁴ mode

USB ports for connecting peripherals

MAG540/540w3 is equipped with two USB 2.0 ports. They allow connecting wired and wireless devices, such as keyboards, mice, memory cards, etc. Peripherals make it easier to type and use the browser.

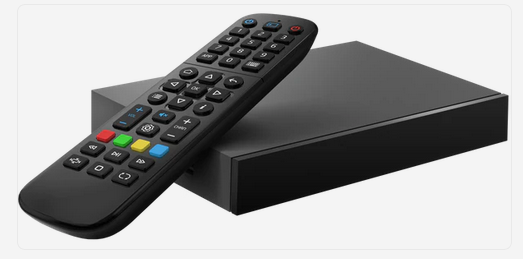

Ergonomic remote control

MAG540/540w3 comes with a state-of-the-art IR remote control with customizable IR systems. If other devices with an infrared receiver (air conditioner or TV set) are located nearby, the remote control can be configured in a way that doesn’t interfere with their operation. The remote has five programmable buttons. Copy the IR codes from the buttons of other devices onto them and control the devices in the room from one remote control. Remote control training will take no more than one minute.

Specifications

Hardware

Chipset	Amlogic S905X2
Processor	Quad-core ARM Cortex-A53, 1,900 MHz
Performance	18,400 DMIPS
RAM	1 GB DDR3
Flash memory	4 GB eMMC

Software

Operating system

Linux 4.9

Interfaces

Digital ports	HDMI 2.1
Ethernet	100 Mbps
USB	USB 2.0 × 2
Wi-Fi	Built-in 2T2R ac (MAG540w3 only)

Audio & video

Audio сodecs	MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Audio formats	AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video modes	PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Video сodecs	MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containers	TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats	JPEG, PNG, BMP, RAW
Subtitles	DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVTT, closed captions
Playlist formats	M3U, M3U8, PLS, CUE

Dimensions

Power adapter	DC 5V, 2A (DC 12V, 1А optional)

Dimensions

Width/depth/height, mm	120x78x21mm
Weight, g	110g

Standard set

Whats Include in Box

A MAG520w3 set-top box, a user manual, an HDMI cable, a 5V 2A power adapter, a remote control, two AAA batteries, and packaging

Additional information

Weight	1.00 lbs
Dimensions	5 × 6 × 3 in
